Hull Construction
Fin keel with skeg hung rudder underwater configuration
Solid FRP (fiberglass) hull construction of woven roving and chopped matt FRP with gelcoat exterior.
Moderate fin keel with encapsulated lead ballast
Topsides are original gelcoat (in good condition) with White hull accented by painted Light Blue double stripe boot stripe and single cove stripe.
Bottom coated with Blue anti-fouling paint
Skeg hung bronze and FRP construction rudder with bronze rudder stock and heel fitting
Propellor located / protected in aperture between skeg and rudder
Bronze thru-hull fitting for ship’s mechanical and plumbing systems (under waterline)
Polycarbonate thru-hull fitting for electronics impellor and transducer (under waterline)
Chrome bronze vents for ship tankage (transom and topsides above cove stripe)
Teak rub rail with stainless steel half-round guard rails on port and starboard topsides.
Hull joined to deck by means of inward-facing hull flange overlaid with FRP decks.

Deck, Cabin and Cockpit Construction
FRP decks, cabin and cockpit with end grain balsa and solid plywood coring
Exterior deck finish is gelcoat with White smooth areas and contrasting Light Gray non-skid surfaces.
Hull and deck joined by deck overlapping inward-facing hull flange.
Deck and hull joint thru-bolted and bedded with adhesive compound
Deck and hull joint further fastened by thru-bolting of teak toe rail port and starboard.

Deck, Cabin and Cockpit Hardware and Features
Deck
Stainless steel bow rail with integral navigational lighting
Stainless steel stern rail with integral navigational lighting
Transom-mounted stainless steel boarding / swim ladder with teak treads
Vinyl coated stainless steel wire upper life lines
Uncoated stainless steel wire lower lifelines
Stainless steel life line stanchions with opening gates port and starboard.
Teak toe rails port and starboard
Stainless steel stem iron with integral bow chocks and head stay fitting
Stainless steel anchor rollers (2ea)
Cast aluminum bow cleats port and starboard forward
Stainless steel bow cleat on center line forward
Lofrans Royal RF004269 electric anchor windlass (chain and rode)
Chrome bronze anchor chain / rode deck hawse / pipe
Deck fitting / fills for waste pump-out, water fill and fuel fill
Chrome bronze deck scuppers (port and starboard / fore and aft)
Stainless steel chain plates port and starboard
Inboard headsail tracks mounted on side decks (port and starboard) with docking line cleats on adjustable cars and Garhauer lead blocks on adjustable cars
Outboard headsail tracks mounted on toe rails (port and starboard) with docking line cleats on adjustable cars, Garhauer lead blocks on adjustable cars  and additional adjustable car.
Cast aluminum stern cleats port and starboard
Ensign staff socket on taff rail
Stainless steel back stay tang
Cabin
Opening ports (with screens) in cabin sides port and starboard (3ea per side)
Fixed ports in cabin sides port and starboard (1ea per side)
Varnished Teak handrails on port and starboard on cabin top
FRP dorade boxes with adjustable / removable cowls port and starboard outboard of mast
partners
Cast aluminum mast partner
Opening hatches (with screens) on cabin top above forward and main cabins
Sliding FRP companionway hatch with FRP hatch tank and FRP instrument pod.
Cockpit
Self-bailing cockpit
Raised FRP cockpit coamings and winch islands with varnished Teak caps
Interior cockpit coaming storage cubbies with varnished Teak trim port and starboard
Primary winches (Lewmar #40 / 2-speed / self-tailing) mounted on winch islands port and starboard
Cast aluminum sheet cleats mounted on winch islands port and starboard
Under seat cockpit storage lockers port, starboard and aft.
Under seat (sealed and vented) propane locker.
Edson steering pedestal with custom stainless steel binnacle guard

Spars and Rigging
Metal Mast Marine single-spreader, masthead-rigged, keel-stepped aluminum mast
Mast equipped with folding aluminum climbing steps
Metal Mast aluminum boom
1x19 stainless steel standing rigging (shrouds and stays) with chrome bronze turnbuckle adjusters
Dacron braid main and headsail halyards
Dacron braid boom topping lift
Note: Halyards and boom topping lift new in 2022

Sail Trim and Sail Handling Equipment
Hood Seafurl 2 roller furling headstay
Tides marine mainsail luff track making raising and lowering mainsail a smooth and easy operation
Lazy jacks mainsail containment system
Lewmar #40CST sheet winches (2ea / cockpit location)
Lewmar #16C halyard winch (1ea / mast locations)
Lewmar #8C halyard winch (1ea / mast location)
Garhauer main sheet blocks and cam cleat
Garhauer headsail blocks (adjustable inner leads)
Garhauer  headsail blocks (adjustable outer leads)

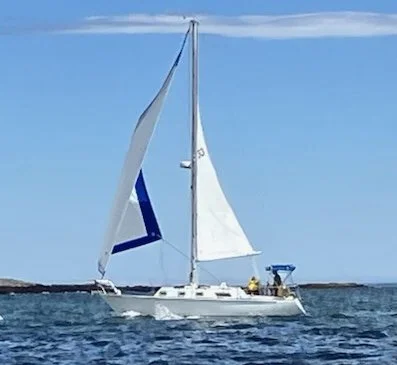

Sails and Canvas
Dacron full-battened mainsail
Roller-furling genoa with sunshield
Spinnaker
Mainsail cover
Cockpit bimini with stainless steel bows
Companionway dodger with stainless steel bows

Electronics and Navigational Equipment
Aquameter Galaxy helm compass
Garmin chart plotter and radar
Icom M45 VHF radio
Raymarine ST60+ knot meter
Raymarine ST60+ depth sounder
Raymarine ST60+ wind speed and direction
Raymarine autopilot
Wheems and Plath ships clock
Wheems and Plath barometer
Dual XDM27BT Bluetooth stereo and speakers

Auxiliary Propulsion and Fuel Systems
Universal inboard diesel / Model5424 / 3-Cylinder / 24HP / FWC
Universal ignition panel with tachometer, hours meter, engine temperature and voltage gauges
Engine Hours: 988 Hours (approximate)
Separate engine controls for throttle and transmission on Edson steering pedestal
Hurth transmission
Stainless steel propellor shaft (1”)
Traditional style bronze and flax-packing shaft stuffing box
Water lubricated cutlass bearing
Bronze fixed two-blade propellor (15”) protected by skeg / rudder aperture
Stainless steel, aluminum and rubber motor mounts attached to beds with stainless steel hanger bolts
Water-lock style muffler wet exhaust
Aluminum fuel tank located under cockpit sole aft
Racor 500FG fuel filter

Steering System and Equipment
Bronze and FRP construction rudder
Skeg mounted rudder with bronze heel fitting on skeg
Edson steering pulpit
Edson stainless steel Destroyer style steering wheel
Edson cable and quadrant steering linkage
Emergency tiller
Raymarine autopilot

Freshwater Plumbing and Sanitation Systems and Equipment
Freshwater capacity of 65 gallons in two stainless steel storage tanks
Water storage tanks located under forward berth and under main salon cabin sole

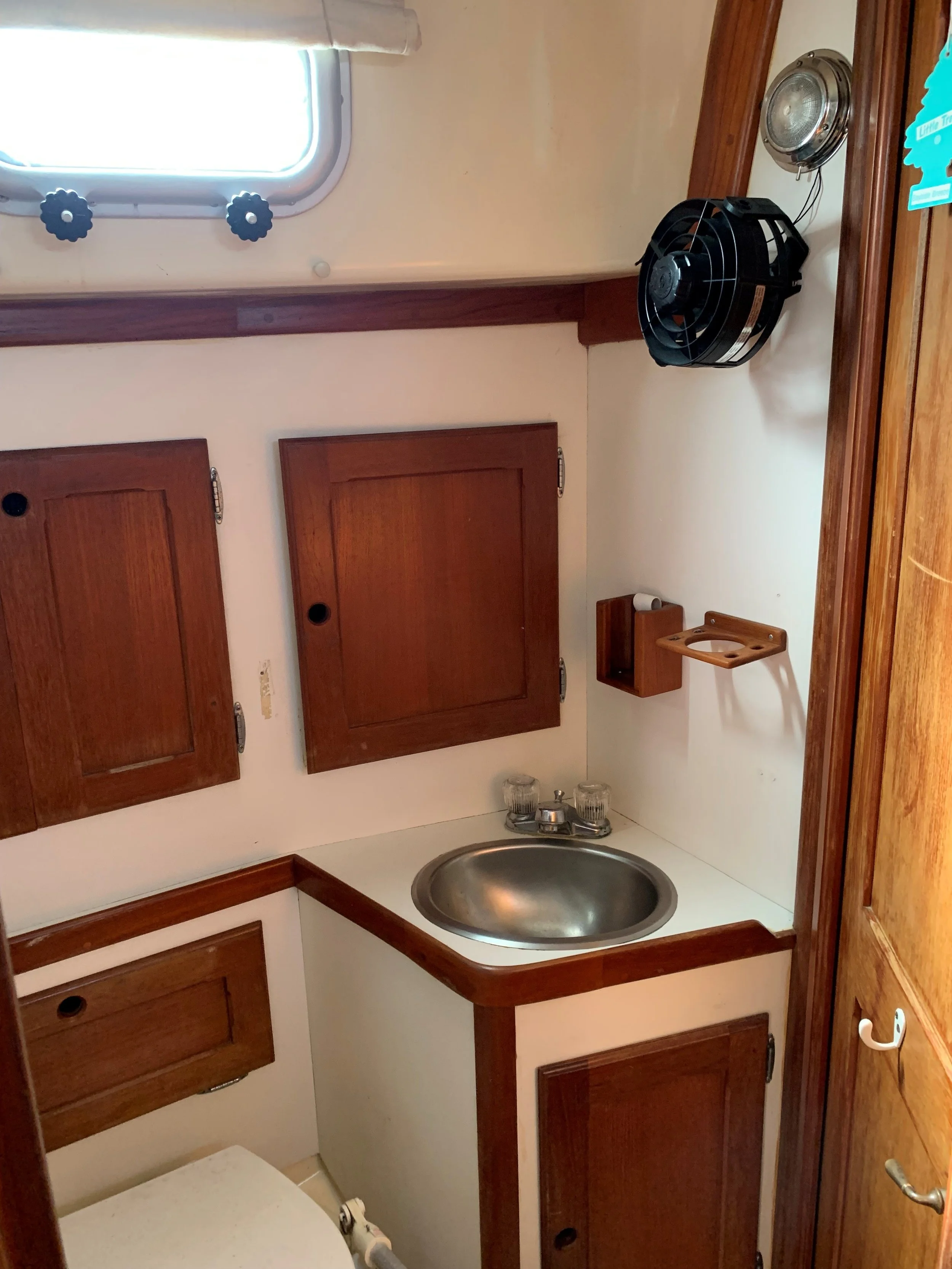

Stainless steel sin basins in galley and head compartment
Hot and cold pressure water supplied to galley and head compartment sink basins
Manually pumped cold water supplied to galley sink basin
5 Gallon stainless steel hot water heater / storage tank located in starboard cockpit locker
Hot water supplied by 120-Volt AC heating element and by engine via heat exchanger.
Raritan manually operated marine toilet (head)
Toilet plumbed for discharge by way of Y-valve either directly overboard or to blackwater tank.
Poly blackwater holding tank (12 Gallon approx.) located under port V-berth

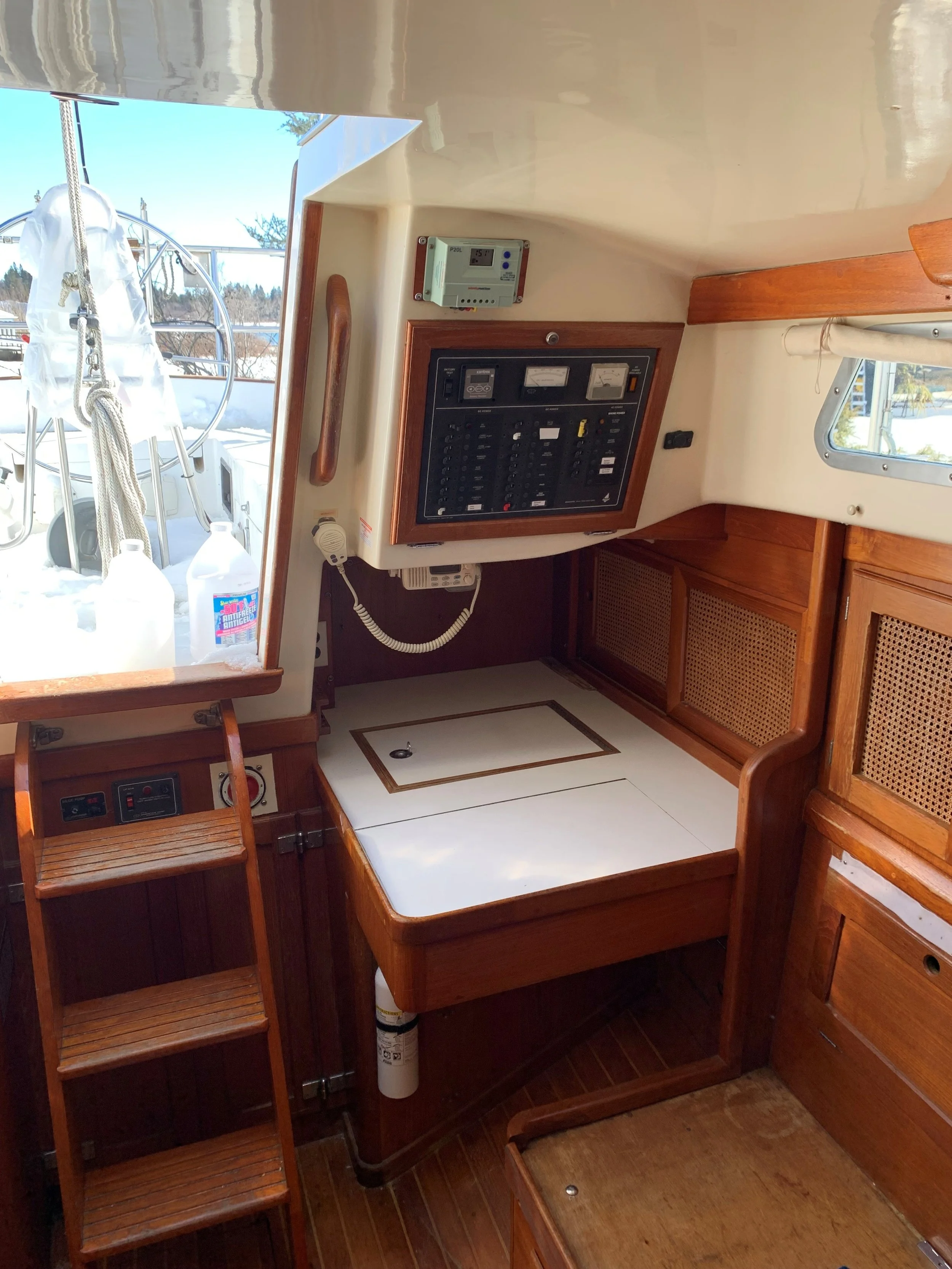

Electrical Systems and Equipment
12-Volt DC and 120-Volt AC electrical systems
Separate battery banks for ships systems and engine start
One (1) 12-Volt DC battery for engine start
Two (2) 6-Volt Dc batteries wired in series for ships DC systems
Blue Seas 3-way battery selector switch

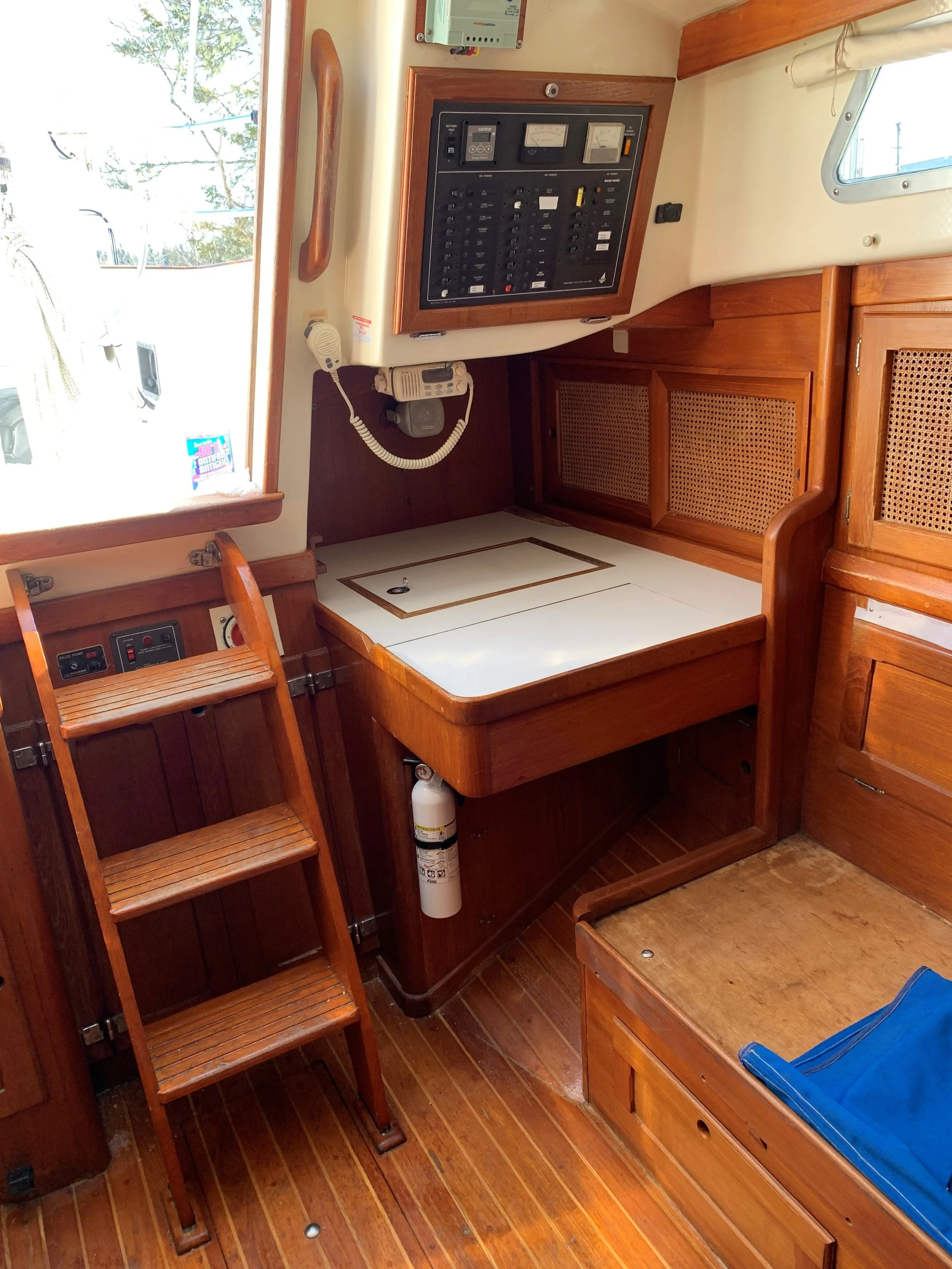

Bass Products 12-Volt DC circuit breaker panel
30 Amp AC shore power inlet
Bass Products 120-Volt AC reverse polarity indicator, mast breaker and branch breakers for AC outlets, water heater and battery charger
Battery charging by way of True Charge 20+ battery charger and by engine alternator

Ground Tackle Systems and Equipment
Stainless steel and rubber roller bow anchor rollers (2ea)
Lofrans Royal RF004269 manually operated anchor windlass (chain and rode)
Primary Anchor: Plow style anchor 25’ of chain and  200’ of Nylon Brait anchor rode
Secondary Anchor: Plow style anchor with appropriate length of chain and 200’ of Nylon 3-strand anchor rode

Dewatering Equipment
Electric / automatic bilge pump with float switch
Whale Gusher manually operated bilge pump

Safety Equipment
Fire extinguishers (3ea)
Emergency tiller
Type IV PFD (life ring / 1ea)

Additional Equipment
Docking lines and fenders
Storage hammocks (2ea)
Telescoping aluminum boat hook
